ELP High-Speed USB Camera
Elp High Speed Usb Camera Mjpeg 1080P 60fps/720P 120fps/ 360P 260fps Uvc Omnivision OV4689 cmos Usb Webcam Camera Met Zoom Lens
Contact for consultation
- The ELP High-Speed USB Camera is a high-performance industrial camera equipped with a 1/3-inch OmniVision OV4689 CMOS sensor, supporting exceptional frame rates of up to 260 fps at 640×360, 120 fps at 1280×720, and 60 fps at 1920×1080.
- This product complies with the USB Video Class (UVC) standard, enabling easy plug-and-play connectivity with operating systems such as Windows, Linux, macOS, Android, and Raspberry Pi without requiring driver installation.
- With its compact 38×38 mm design and high compatibility, this camera is ideal for applications such as machine vision, object recognition, industrial inspection, and embedded systems.
| Sensor | OmniVision OV4689 CMOS 1/3 inch | Interface | USB 2.0 High Speed |
| Maximum Resolution | 1920(H) × 1080(V) pixels | Operating Voltage | DC 5V (USB Bus Power) |
| Frame Rates | 1920×1080 MJPEG @ 60fps 1280×720 MJPEG @ 120fps 640×360 MJPEG @ 260fps |
Operating Current | 150mA ~ 185mA |
| Image Format | MJPEG, YUY2 (YUYV) | Operating Temperature | –20°C to 70°C |
| Pixel Size | 2.0µm × 2.0µm | Board Size | 38mm × 38mm |
| Minimum Illumination | 0.1 Lux | Supported OS | Windows XP/Vista/7/8/10/11, Linux (with UVC), macOS X 10.4.8+, Android 4.0+, Raspberry Pi |
-
High performance: Capable of recording video at up to 260 fps, enabling smooth and detailed capture of fast-moving objects.
-

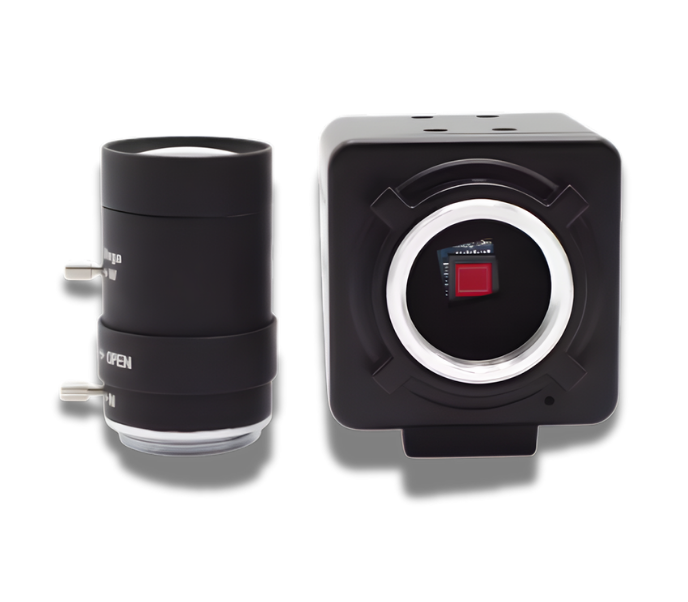

Versatile lens options: Supports multiple lens types, including fixed lenses (2.1mm, 2.8mm, 3.6mm, 6mm, 8mm, 12mm) and fisheye lenses (170°, 180°), suitable for both wide-angle and detailed viewing needs.
-
High compatibility: Works well with various operating systems and software such as OpenCV and Amcap, making it suitable for AI applications, machine vision, and industrial automation.
-
Easy integration: Compact design with UVC support allows seamless integration into embedded systems and mobile devices.
-
Flexible adjustment: Supports adjustable image parameters such as brightness, contrast, saturation, white balance, and exposure, adapting to different lighting conditions.
