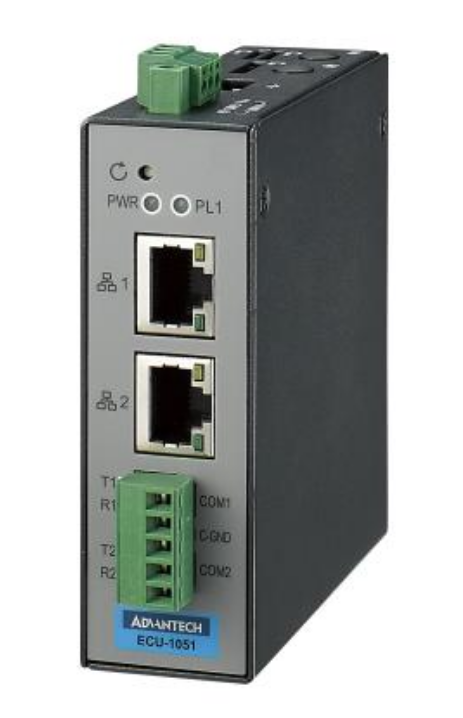

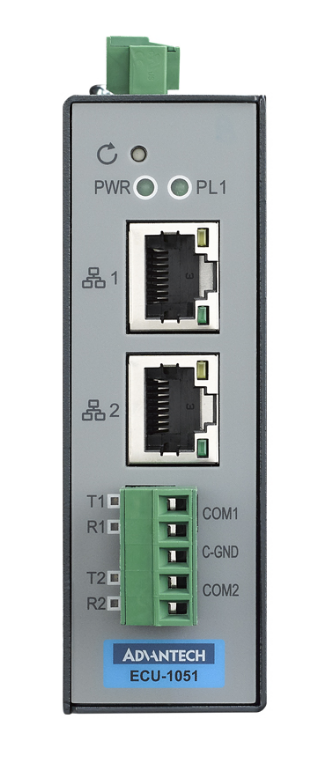

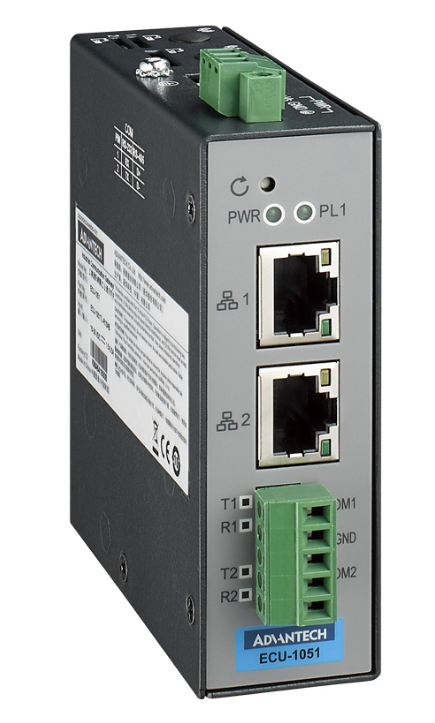

ECU-1051
ECU-1051
Smart Communication Gateway for IIoT Applications
- CPU: TI Cortex A8 600 MHz with DDR3L 256 MB RAM
- Supports web service for remote online monitoring
- Firmware updates via SD card and online updates
- Data logging capabilities on SD card
- Supports dual SIM card slots for communication redundancy
- Supports MQTT Client for cloud connectivity
Contact for consultation Category IOT Gateway
Share
Product description
-
ECU-1051 is an industrial IoT Gateway with a compact, low power consumption design. It runs the Linux operating system (kernel 4.x) and supports wireless connectivity expansion (Wi-Fi/4G).
-
The device can be mounted inside a control cabinet (wall-mount/Rail-DIN), making it ideal for monitoring devices like PLC/SCADA, conventional protocol conversion, and connecting data to the Cloud (MQTT, OPC-UA, DNP3…).
Specifications
| CPU | TI Cortex A8 600 MHz with DDR3L 256 MB RAM | OS & Software |
Linux kernel 4.x, EdgeLink SDK, supports C/Python programming, configuration via EdgeLink Studio, OTA, firmware update from SD
|
| RAM/Flash | 256 MB DDR3L + 512 MB NAND Flash; supports data storage on SD card | Dimensions & Weight |

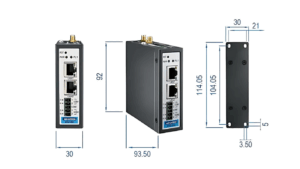

92×30×93mm∼0.45kg
|
| I/O Ports | 2 Ethernet 10/100 Mbps RJ-45, 2 COM (RS-232/485, isolated optional), 1 USB 2.0, 1 micro-SD slot, 2 Nano-SIM slots, 1 full-size mPCIe slot (Wi-Fi/4G) | Supported Protocols |
OPC-UA (client/server), MQTT, DNP3, Modbus RTU/TCP, IEC-60870-5-101/104, BACnet/IP...
|
| Memory | DDR3L 256 MB | Power Supply & Consumption |
10–30V DC, ∼2.4W @ 24V
|
| Storage | 1×512MB NAND Flash | Operating Temperature | −40∘C to 70∘C |
| Safety Timer | Configurable watchdog interval from 15s to 255s | Certifications & Protection |
CE, FCC class A; anti-interference/ESD isolation; SECC metal casing; reinforced DIN rail mount
|
Features
- Dual Ethernet & Dual Isolated COM Ports: Flexible communication within automation systems.
- Dual SIM + LTE/Wi-Fi Support: Ensures redundant connectivity via cellular networks.
- Integrated EdgeLink SDK & MQTT/OPC-UA: Facilitates easy deployment of IIoT applications and data analysis at the edge.
- Operation in Harsh Environments: Withstands very low to very high temperatures and high humidity.
- Flexible Power Supply & Low Consumption: Suitable for standard $24 \, \text{V}$ industrial power sources.
Application
- Industry 4.0 & SCADA: Connecting PLCs (Siemens, Mitsubishi, Allen-Bradley, etc.) to central control systems or the Cloud.
- Energy Monitoring & Smart Buildings: Integrating sensors, collecting data via Modbus/BACnet OSHA.
- Smart Grid & Renewable Energy: Transferring data from stations and inverters to efficiency platforms.
- Predictive Maintenance - Edge Processing: Event processing at the edge, SD log storage, MQTT/OPC-UA connection, VPN support.
