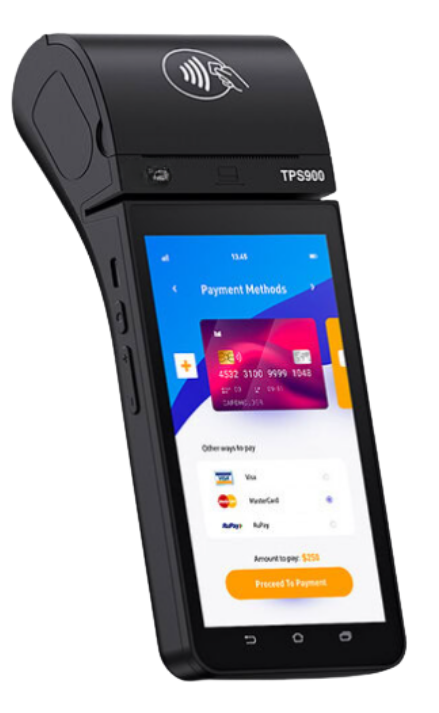

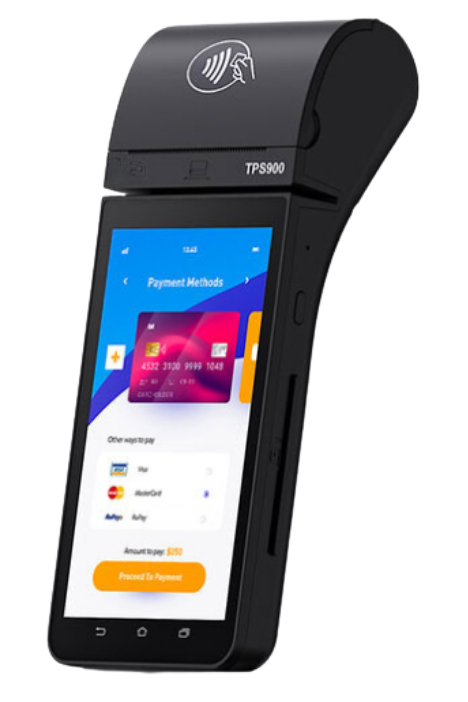

Handheld Payment Terminal

Handheld POS - TPS900

Payment Terminal

Perform transactions efficiently and securely

TPS900 Handheld POS Machine is an advanced Android mobile POS (EFT-POS) machine. It supports multi-payment processing (chip card, magnetic stripe, NFC, QR-code), standard thermal receipt printing, biometric authentication (fingerprint/iris), and is suitable for applications like banking, toll collection, and mobile retail.

Operating System (OS)	Android 5.1 / 10	Camera	Fixed 5MP rear camera, 2MP front camera (optional)

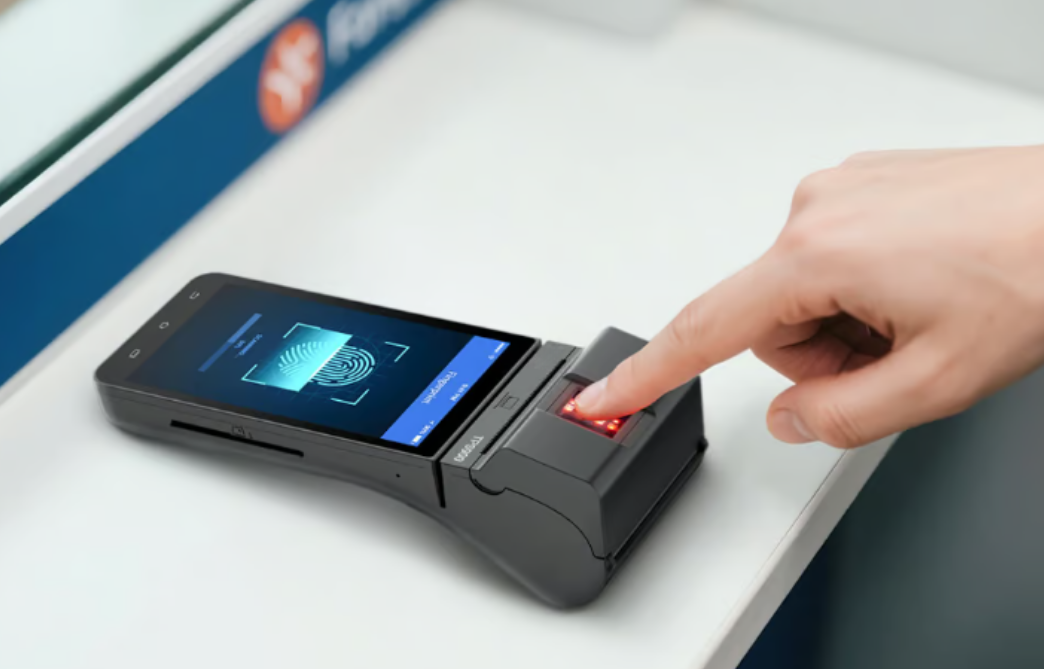

CPU	Quad-core 1.3 GHz (optional octa-core configuration)	Biometrics	Optional fingerprint sensor (FBI/ISO), supports iris recognition
RAM/ROM	Basic: 1 GB RAM + 8 GB eMMCOptional: 2 GB / 3 GB / 4 GB RAM with 16/32/64 GB ROM	Contactless Payment	NFC/EMV and QR-code, contactless chip
Display	5.5" IPS touch, resolution 720×1280	Battery & Charging	7.6V/3000mAh Li-ion (optional 4400mAh), charges via 5V/2A adapter (or 5V/3A)
Integrated Printer	58mm thermal (ϕ40mm), speed ∼80mm/s, print head life >100km	Dimensions & Weight	∼205×82×55mm; ∼400g
Connectivity/Ports	2 SIM (4G/LTE/WCDMA/GPRS), Wi-Fi, Bluetooth, optional GPS; 1 Micro-USB; 1 USB-C (optional); RJ11 (cash drawer), speaker, mic	Operating Environment	−5∘C to 45∘C

Enhanced Security: EMV, PCI compliant, integrated biometrics and data authentication.
Fast Receipt Printing: High-speed $58 \, \text{mm}$ printer, long print head life to boost productivity.

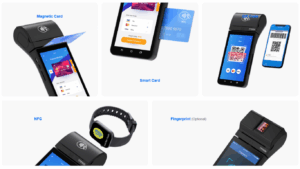

Multi-Payment Methods: Supports chip, magnetic stripe, contactless, QR, NFC, and biometric payment.
Durable Battery, 24/7 Mobile: $3000 \, \text{mAh}$ battery for 15 hours of continuous operation and 12 days of standby.
Diverse & Robust Connectivity: 2 SIM 4G, dual Wi-Fi, Bluetooth, GPS ensures stable setup everywhere.
Convenient for Mobile Business: Compact design, with charging dock and protective casing, suitable for delivery, parking, and restaurants.
