AI Embedded Computer
BOXER-8251AI

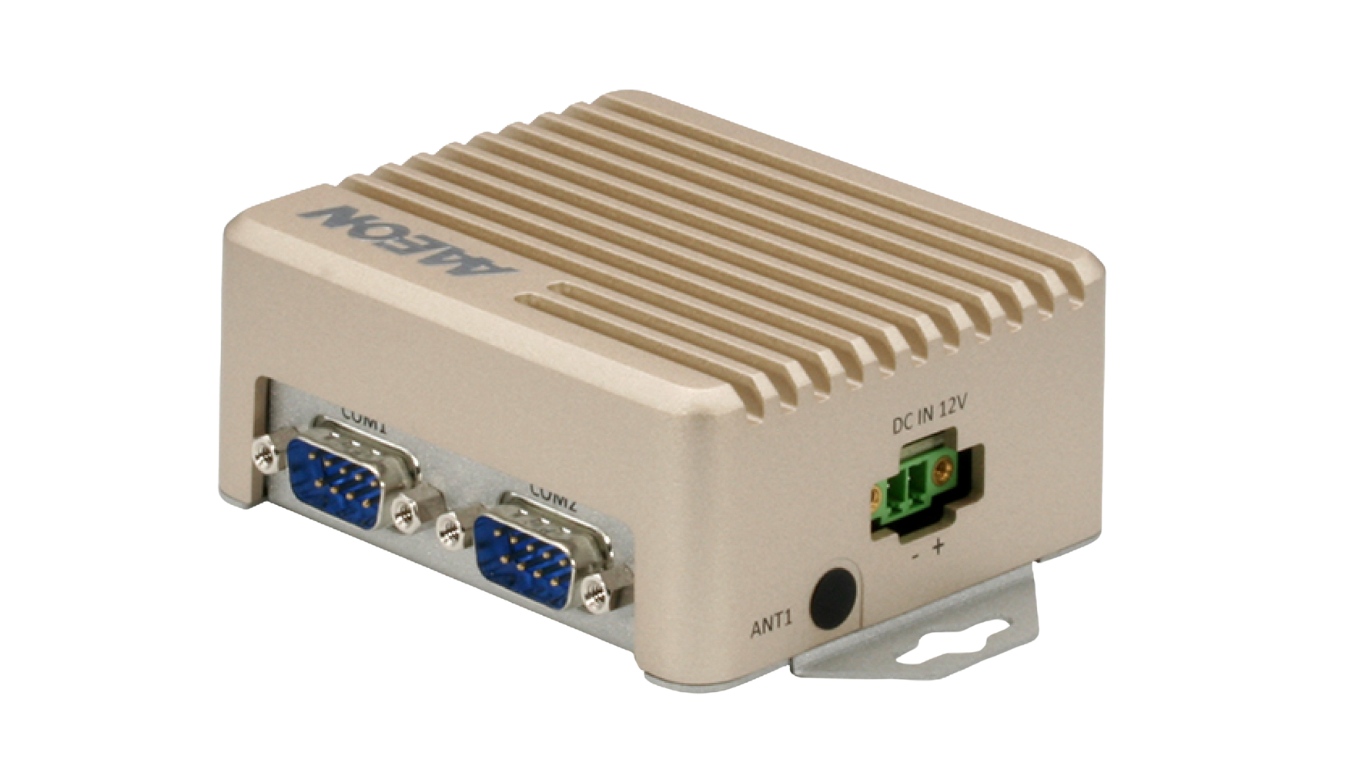

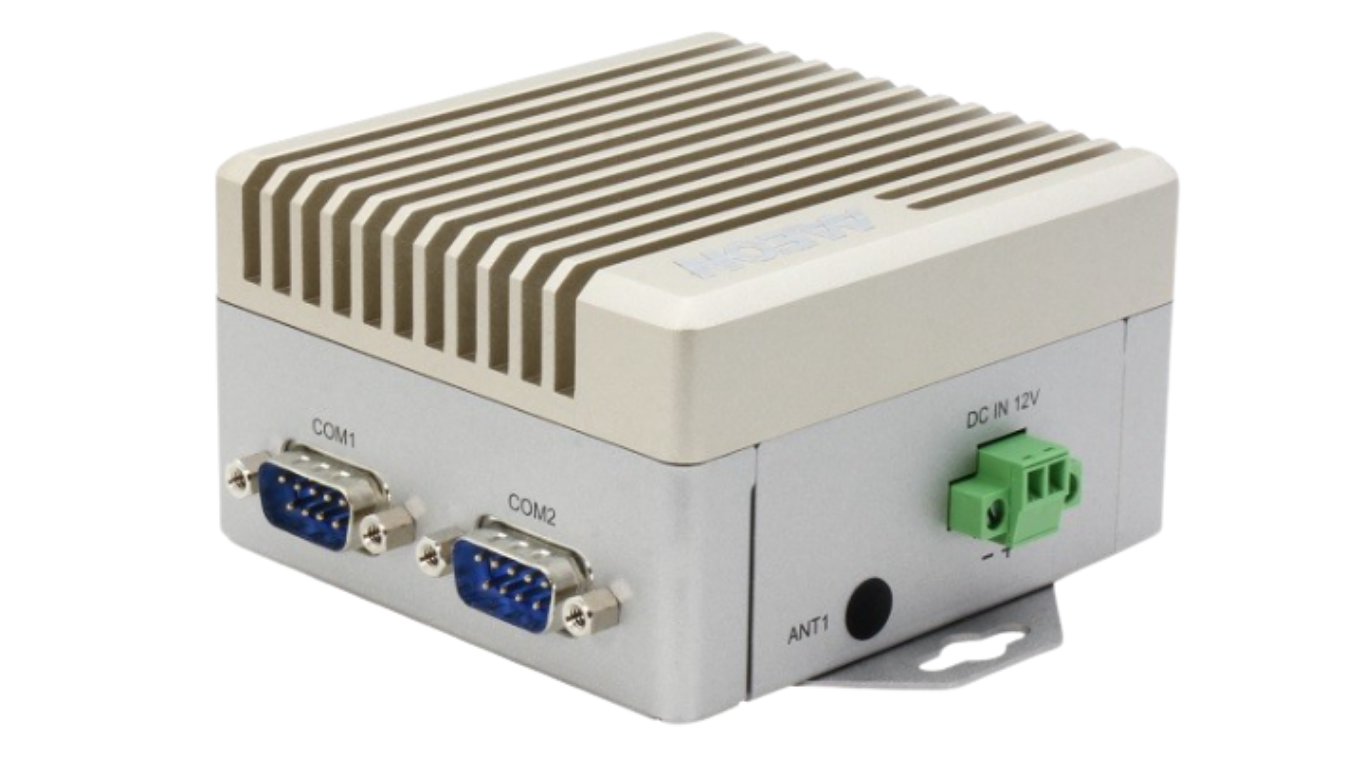

AAEON BOXER-8251AI | AI@Edge Fanless Embedded Box PC with NVIDIA Xavier NX
- NVIDIA® Jetson Xavier™ NX
- 8GB LPDDR4x + 16GB eMMC
- USB3.2 Gen 1 x 4
- LAN x 1 + RS-232 x 2
- Power Supply: DC 12V
Contact for consultation
- The BOXER-8251AI is an industrial AI edge embedded computer developed by AAEON, powered by the NVIDIA Jetson Xavier NX module.
- This device features a compact, fanless design, making it ideal for edge AI applications, industrial IoT, automation, and embedded systems that require high performance and durability in harsh environments.
| Processor (SoC) | NVIDIA Jetson Xavier NX | Power Supply | 12V DC via 2-pin connector |
| System Memory | 8GB LPDDR4x | Dimensions | • Standard version: 88 mm × 75 mm × 39 mm • High-heat version: 90 mm × 84 mm × 52 mm |
| Storage | 16GB integrated eMMC + MicroSD slot | Weight | • Standard version: 0.3 kg • High-heat version: 0.6 kg |
| Display Interface | HDMI 2.0 | Operating Temperature | –20°C to +40°C (depending on performance mode) |
| Networking | 1× Gigabit Ethernet port | Supported OS | • AAEON ACLinux 4.9 • NVIDIA Jetpack 4.5 • Ubuntu 18.04 |
| I/O Ports | • 4× USB 3.2 Gen 1 • 2× RS-232 • 1× Micro-USB (for flashing OS) • 1× system recovery button |
Vibration Resistance | 3 Grms / 5–500 Hz, MicroSD or eMMC |
| Expansion Slot | 1× M.2 E-Key 2230 (supports Wi-Fi) | Certification | CE / FCC Class A |
-
Powerful AI performance: With an integrated GPU and Tensor cores, the device can handle complex AI tasks such as image recognition, video analytics, and deep learning.
-
Fanless design: Minimizes dust accumulation and enhances durability, suitable for harsh industrial environments.
-
Compact size: Easy to install in confined spaces or integrate into existing systems.
-
Flexible configuration: Supports multiple I/O ports and expansion slots, allowing customization for specific application needs.
-
Multiple performance modes: Users can choose between different performance levels to balance power consumption and processing capability.
-
Machine vision: Product quality inspection and defect detection on production lines.
-
Intelligent video analytics: Facial recognition, people counting, and abnormal behavior detection for security monitoring.
-
Industrial automation: Robot control, equipment monitoring, and production process optimization.
-
Smart transportation: Traffic analysis, license plate recognition, and parking management.
